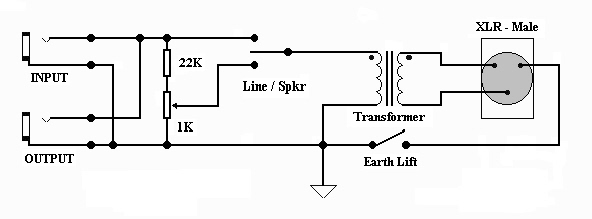

Passive Design

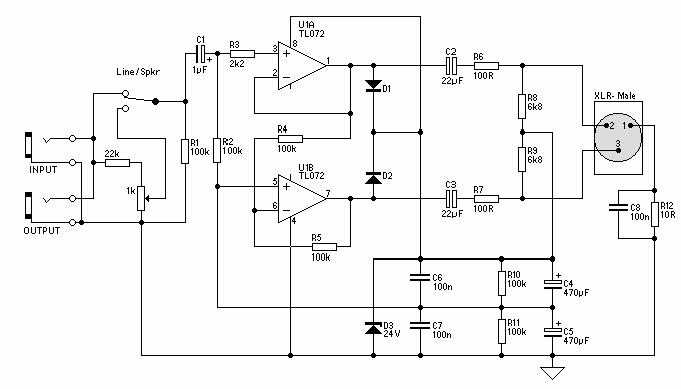

Active Design

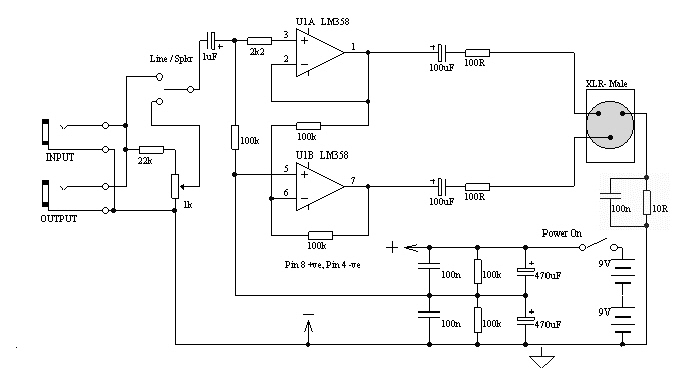

Active DI Box (Version 2)
There is a defect in the design that causes oscillation on the op-amps.
To resolve the problem reduce the feedback resistors (100k) down to 47K and the design works 100%
Passive Design
Active Design
Active DI Box (Version 2)
There is a defect in the design that causes oscillation on the op-amps.
To resolve the problem reduce the feedback resistors (100k) down to 47K and the design works 100%
